Drainstore Sewage Pumping Station – 610x2000mm (2026)

Single Sewage Pumping Station – 610mm dia. x 2000mm deep

New for 2026

This pumping station is used for extensions, garden rooms, small conversions and for pumping sewage up to septic tanks and sewage treatment plants.

Sewage Pumping Station includes:

• 450mm diameter Pedestrian Cover
• 110mm Rubber Inlet Seal
• Automatic Solids Handling Pump (6m or 10m head options)
• Internal 2″ Pipework and fittings including backwater valve
• 610mm diameter (680mm including ribs) x 2000mm polyethylene moulded chamber

Pump Station Features:

• 610mm diameter for easier installation in troublesome areas
• Anti-flotation device helps to eliminate chamber from floating
• Supplied with 110mm seal to allow inlet to be drilled on site
• Job ready for easy installation

Please note:

There must be a minimum space of 550mm below the bottom of the inlet pipe to the base of the chamber to allow for the pump to operate.
A 110mm rubber inlet seal is included to enable the inlet to be cut on site to your requirements.

Optional Extras

Please see Often bought with … section below for any additional items required for your installation.

BCS0006 complies with the rules and regulations of the European Union, as well as other countries, regarding the use of plastic materials in food contact applications.

The information on the properties quoted are given as guidance. Buyers and users are advised of these facts so they can make their own assessment of our products under their own conditions when necessary.

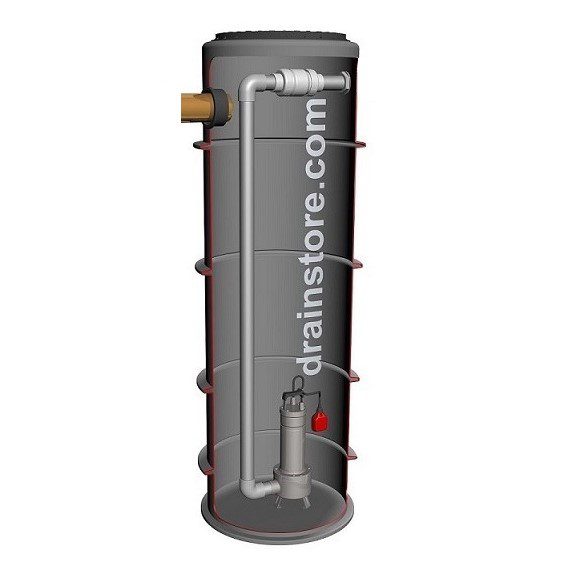

All images shown are for illustration purposes only.  Pump station image shown is the 292L (610mm x 1000mm)
